Latest release (for Vintage Story 1.22.0 - 1.22.2, potentially outdated):
WindowStorageLib_1.2.5.zip  1-click install

I have seperated this from my Window Storage and Vanilla Pane Storage Mods, have configured it so it can be used by other modders aswell. Let me know if any issues arise
Now requires Attribute Rendering Library (Had to change the code so it works with ARL JSON's)

Recommend Config Lib and Auto Config Lib to allow mod settings to be changed in game

Changes have been made to the config file, please remove the old one from the modconfig folder to fix any errors

Features

Animations

• Animations can be called anything (New 1.2.0)

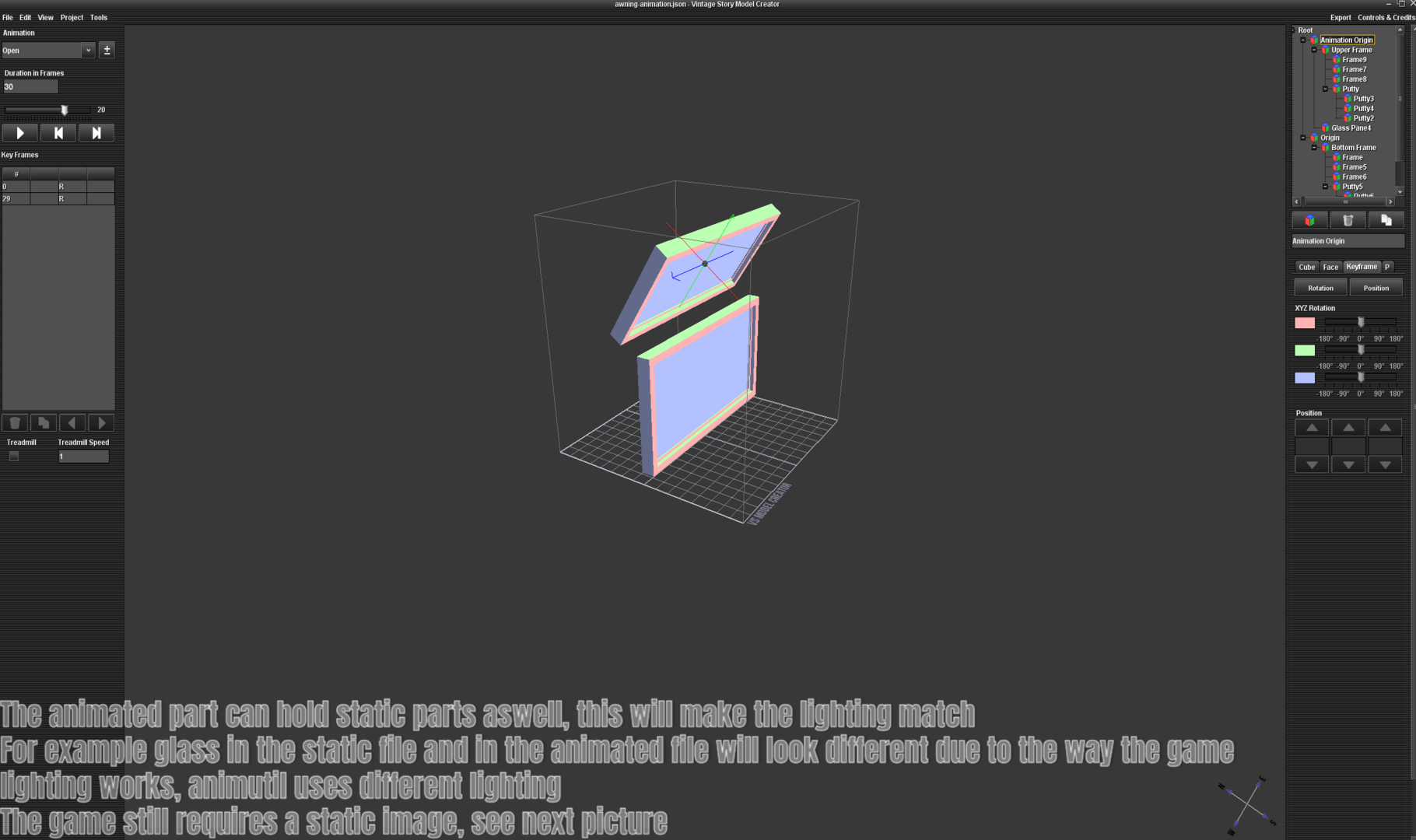

• uses animationShapePath to determine the animations - separate shape file - can contain numerous animations in that file
• isWindow can be used so the state (open/closed) doesn't change but still animates (New 1.2.0)

slotGroups

• slotGroups now have their own section in the JSON (New 1.2.0)

• 21 Slots - 3 Groups - Max 7 per group - (Group 0,1,2) - Can now have separate amounts, example: 3,5,4 (New 1.1.0)
• Transforms can be changed per group - spacing, startOffset, zCenter, yOffset, rotateY (New 1.1.0)
• The selectionBoxes at the end of a JSON will be used to determine the size and positions of the item slots

frameBoxGroups

• frameBoxGroups now have their own section in the JSON (New 1.2.0)
• animOpen and animClose (uses animation code not name) with openFrameBox and closedFrameBox to tie the animation and the box together for interactions (New 1.2.0)
• can now have multiple independent animations (New 1.2.0)
• can use isWindow : false to disable the changing of the open/closed state (New 1.2.0)
• staticFrameBoxes not tied to animations for static elements in an array (New 1.2.0)

collisionBoxGroups

• collisionBoxGroups now have their own section in the JSON (New 1.2.0)
• openCollisionBox, closedCollisionBox which can be used for animated parts (New 1.2.0)
• staticCollisionBoxes not tied to animations for static elements in an array  (New 1.2.0)

Opening & Closing

• canOpen attribute - styles can be made non-opening
• frameBoxGroups handle open/close interactions via selection boxes (New 1.2.0)
• Open and Closed toggle is Server Side only - allows linkedOpen to sync (New 1.1.1)
• linkedOpen attribute - syncs vertical windows to open together (New 1.1.0)
• Open/close works independently when stacked without linkedOpen
• Swoosh sound plays on window pane toggle (New 1.1.4)
• Will drop the closed version when an open window is broken (New 1.1.1)

Display & Stagger

• Tooltip shows current display mode per group

• Player facing block placement
• Per slot item interactions
• Four stagger modes: Straight, Alternating, Random and Fine Tune (New 1.2.0)
• Snaps to pixels for a cleaner look (New 1.1.3)
• Per slotGroup display mode interactions (New 1.2.0)
• Item placement fine-tuning via in-game TFEdit menu (onWindowStorageTransform)

Stacking

• Detects BEWindowStorageLib block directly below - hides slot selection boxes and blocks item placement when stacked
• Can manually choose which slot groups are hidden when stacked via stackingHideGroups (New 1.1.0)
• Display mode info hidden when fully stacked
• Can use placeWith: followed by shape path and pairedWith : "below" to JSON to place down a a stacked block, used with linkedOpen to sync animations.
• For a 2 high block can pair 2 shapes together and will be placed and broken together in the correct positions. Can chain as many as you want but ideally should be for 2 and 3 high - detects blocks above and will give warning and cannot place them.

Food Storage

• Vanilla style perish rate
• Perish rate changes when window opened/closed
• Per-slot freshness info in block tooltip
• Ripening spot detection

Lighting

• Items with LightHsv emit light and show their light level and colour
• Light only updates when brightest value changes - may flicker
• Ghost block lighting bug fixed

Rain Sound

• Rain on window sound
• disableRainSound attribute to disable per style
• Single shared rain sound instance across all windows
• Volume based on rainfall intensity
• Fades when conditions no longer apply
• When open uses ambient weather sound, changes Side Solid by state

Misc

• Contains transform patches for various items to fit on the display area

Controls

• Right click on frameBox to use interactions
• Right click slot with item to place in the slot
• Right click with Empty Hand on item to pick it up from slot
• Sneak + Sprint + Right Click with Empty Hand on any slot to cycle display modes for that group (New 1.2.0)
• Sprint + Right Click with Empty Hand on any slot when in Random Mode to Shuffle Depth (New 1.2.0)
• Sprint + Right Click with Empty Hand on slot with item when in Fine Tune Mode - Move Item Forward (New 1.2.0)
• Sneak + Right Click with Empty Hand on slot with item when in Fine Tune Mode Only - Move Item Backwards (New 1.2.0)
• Wrench + Right Click on a slot with an item to rotate anti-clockwise
• Wrench + Sprint + Right Click on a slot with an item to rotate clockwise

Config

• Can use the config lib menu to change any configs in game
• Universal Rain on Window Volume — 0 (Off) to 10 (Loud)
• Universal Rain Sound Range — 1 to 64 blocks
• Universal Animation Speed — 1 (Very Slow) to 5 (Very Fast)
• Universal Slot Rotation Degrees — 5 to 90
• Universal Slot Stagger Strength — 1 (Subtle) to 5 (Strong)

• See JSON example below.

•     "dependencies": {
          "windowstoragelib": "1.0.0" (Whatever version it is)
      }
  }required for my mod to work with your mod
