Overview

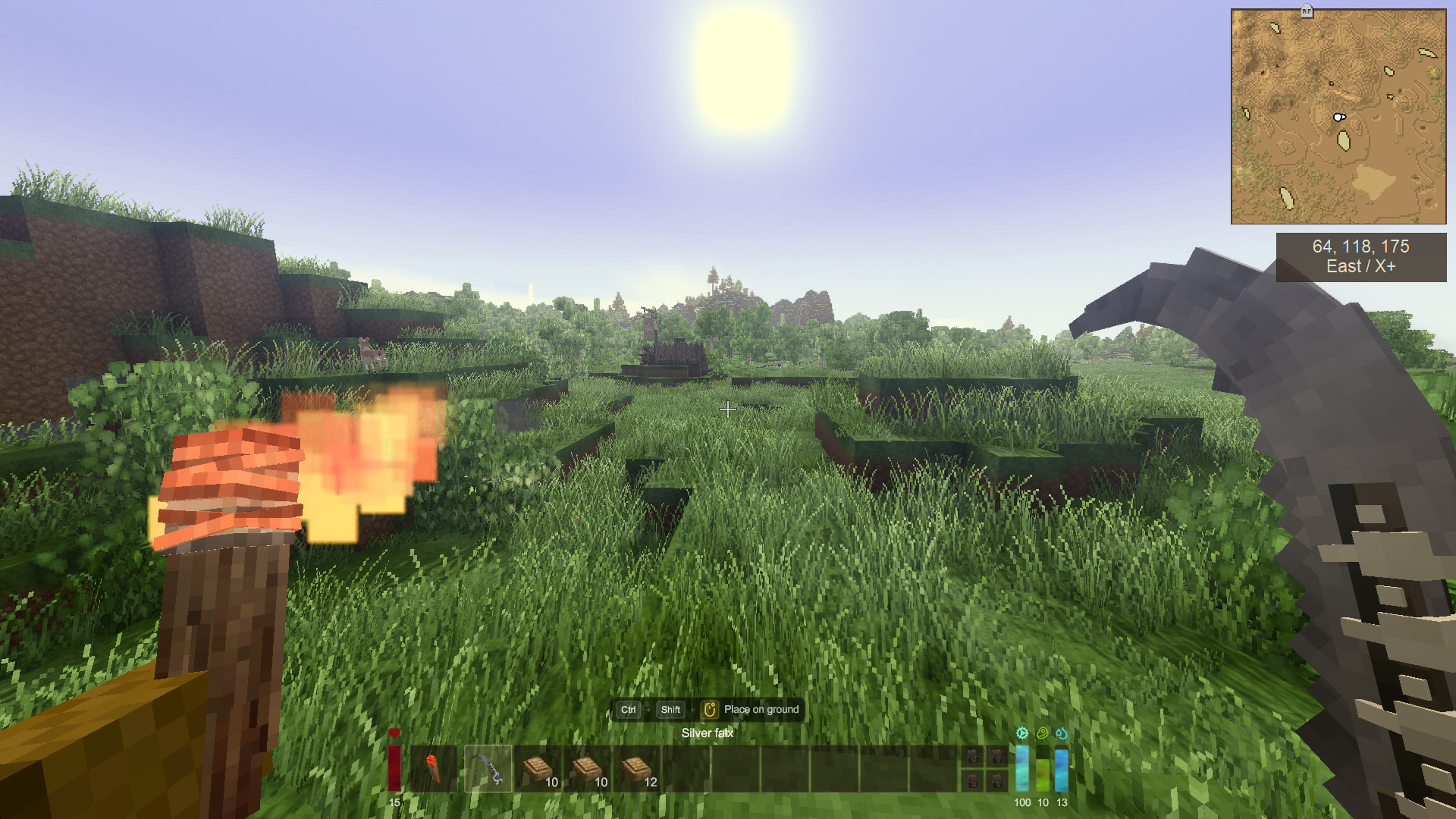

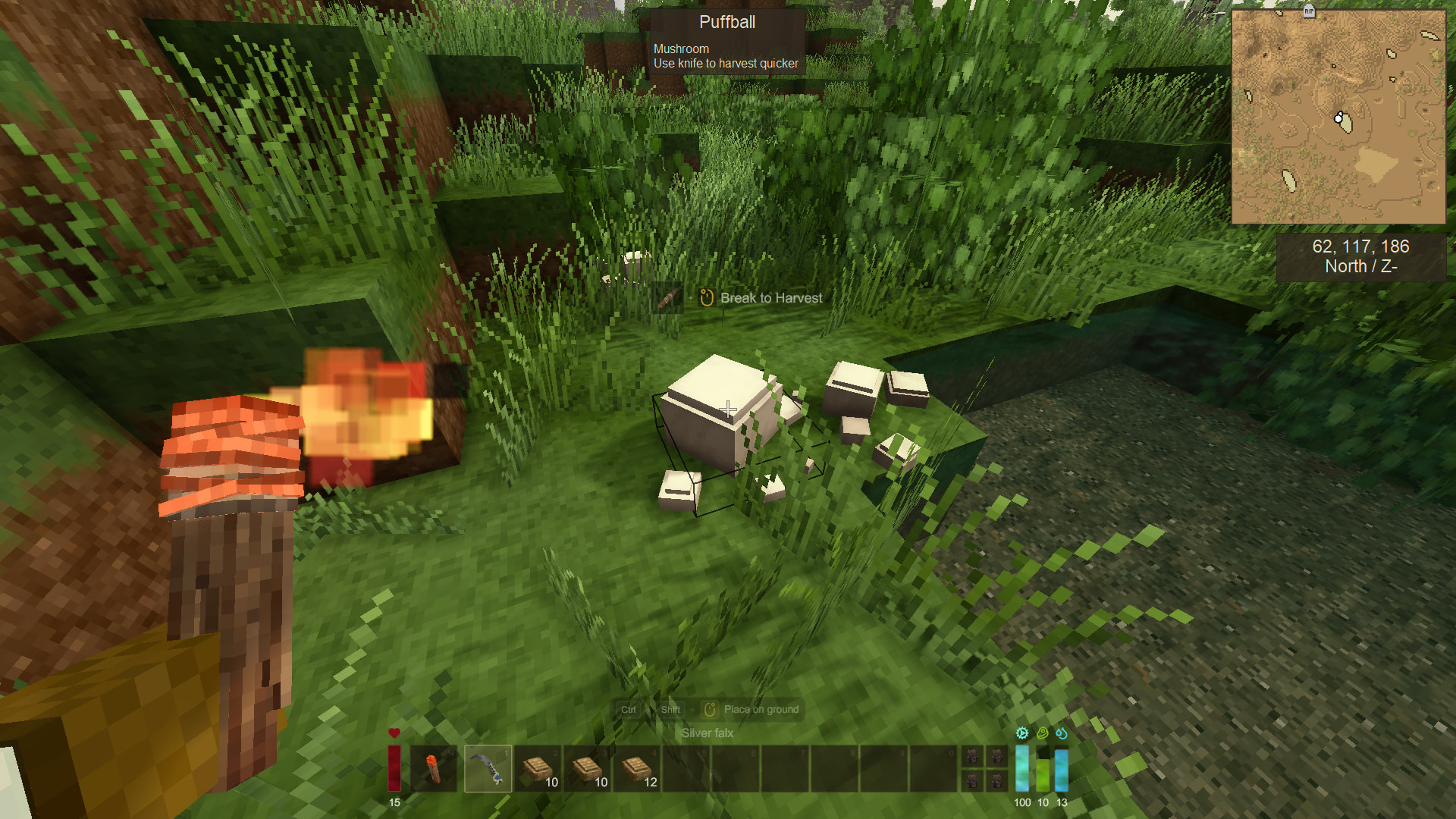

HudUI replaces the vanilla hotbar, world interaction help, block info with a custom UI built on libGUI.

If your mod adds a new stat, you can register a bar into the edge-bar system — no patching required.

Theming

To switch themes, set "theme" in ModConfig/libgui.json. The UI redraws the moment you save the file — no game restart, no reload command.

Looking for more looks? Check here.

For Mod Authors — Adding a Bar

HudUI exposes EdgeBarController.Instance — initialized during StartClientSide.

1. Register the bar

Create two ValueNotifier<float> fields and call AddBar in StartClientSide. Update .Value whenever your stat changes — the GUI redraws automatically.

public override void StartClientSide(ICoreClientAPI api)
{
    if (!api.ModLoader.IsModEnabled("hudui")) return;

    _myStatNotifier = new ValueNotifier<float>(1f);
    _myStatDisplay  = new ValueNotifier<float>(0f);

    api.Event.RegisterGameTickListener(_ =>
    {
        float current = /* your current value */;
        float max     = /* your max value */;
        if (max <= 0) return;

        _myStatNotifier!.Value = current / max;
        _myStatDisplay!.Value  = current;
    }, 20);

    EdgeBarController.Instance!.AddBar(
        "mymod:mystat",
        EdgeBarSide.Right,
        new EdgeBarConfig(
            "#48cae4".FromHex(),
            _myStatNotifier,
            displayValueSource: _myStatDisplay,
            flashThreshold: 0.2f,
            tooltipBuilder: (_, _) =>
                new BarTooltipContent("My Stat", _currentMyStat, _maxMyStat),
            iconDomain: "mymod",
            iconPath: "textures/hud/mystat.svg"
        )
    );
}

2. Dynamic bars (optional)

Show a bar only when needed — add and remove it on the fly:

var controller = EdgeBarController.Instance!;
bool isActive  = /* your condition */;
bool hasBar    = controller.HasBar("mymod:mystat");

if (isActive && !hasBar) controller.AddBar("mymod:mystat", ...);
if (!isActive && hasBar) controller.RemoveBar("mymod:mystat");

3. Cleanup

Dispose your notifiers in ModSystem.Dispose:

public override void Dispose()
{
    _myStatNotifier?.Dispose();
    _myStatDisplay?.Dispose();
    base.Dispose();
}

Compatible mods

HydrateOrDiedrate — thirst bar

Vigor — stamina bar

Mod Version Mod IdentifierFor Game version Downloads Released Changelog Download 1-click mod install*
1.2.0 hudui
1.22.0 - 1.22.3
101 4 days ago hudui_1.2.0.zip 1-click install

make mod universal, so server can force download, still can be used client side only

rebuild for libgui 2.0.0

itemrarity compat

1.1.2 hudui
1.22.0 - 1.22.2
179 May 23rd at 10:40 AM hudui_1.1.2.zip 1-click install

Theme support
Colors now pull from whatever theme you have active in the Gui mod. Swap themes, and the hotbar, slots, and panels
follow along.

Config file
A hudui.json file shows up in your ModConfig folder on first launch. Two settings for now: UseDefaultTheme (keeps the
mod on its built-in colors instead of your Gui theme) and OffhandGap — the space between the offhand slot and the main
hotbar.

1.1.1 hudui
1.22.0 - 1.22.2
86 May 20th at 7:37 AM hudui_1.1.1.zip 1-click install

add AddStandaloneBar / TryGetBar

add DisplayValueWidth to prevent layout shifting

1.1.0 hudui
1.22.0 - 1.22.2
24 May 19th at 1:10 PM hudui_1.1.0.zip 1-click install

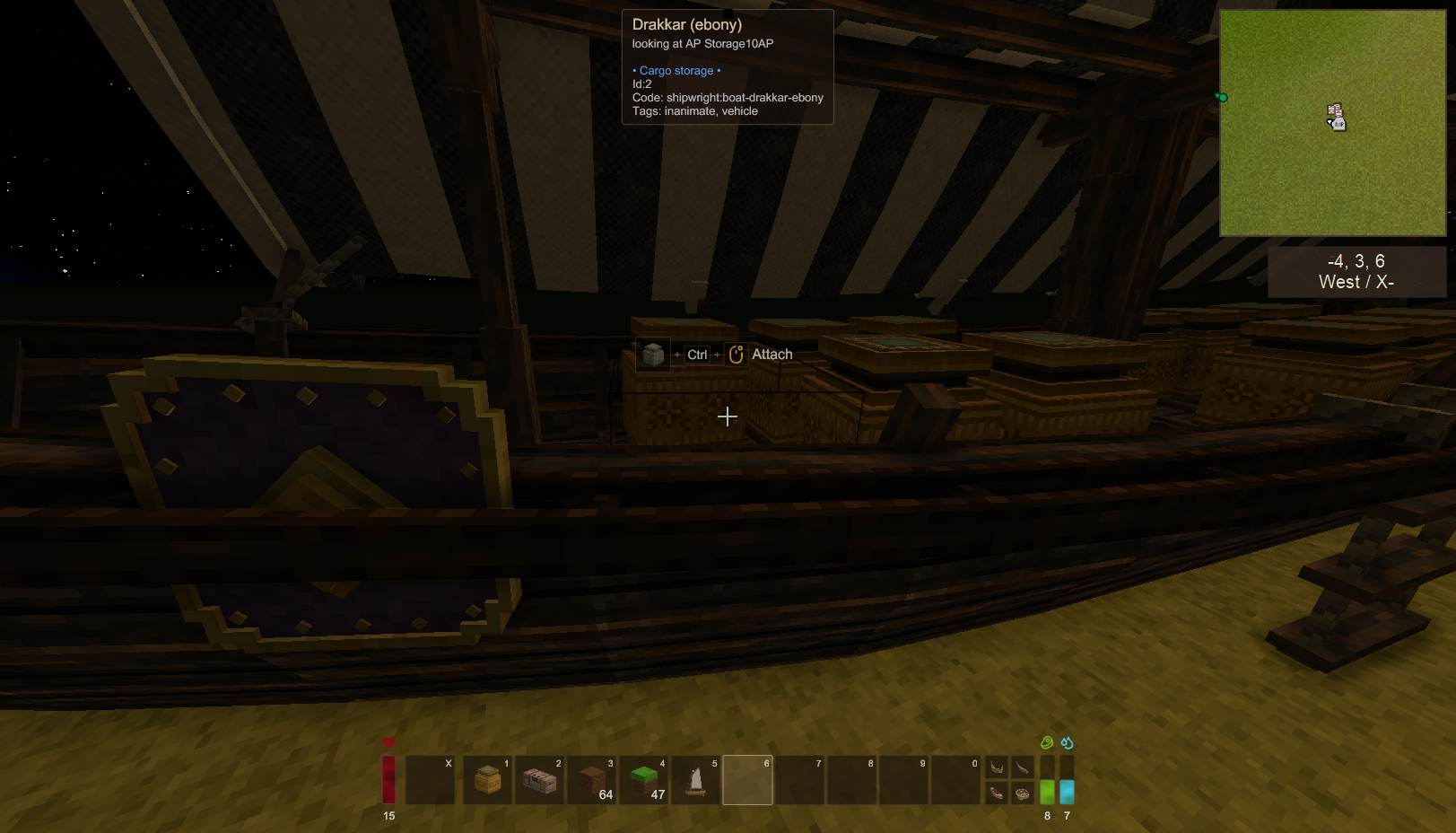

added block info hud, fixed HoD compatibility

1.0.1 hudui
1.22.0 - 1.22.2
57 May 13th at 8:53 AM Release Retracted

Retraction Reason:

HoD compatibility bug

Changelog:

1.0.0 hudui
1.22.0 - 1.22.2
0 May 12th at 2:10 PM Release Retracted

Retraction Reason:

libgui release retracted

Changelog:
