_Durus_ and id be happy to show any details you wanna see! you can hit me up on discord at "Bjorn0411", im on the VS discord server.
and yeah, ive taken the time to manually select basically all the grey parts of the texture atlas, and give them a green color, which wasnt tooo bad, just need to do it once and now I can reuse it as much as I want. It's only really a mild inconvenience now as it means I can only really represent summery greens without editing the atlas again. But right now I dont intend to do anything else anyways.

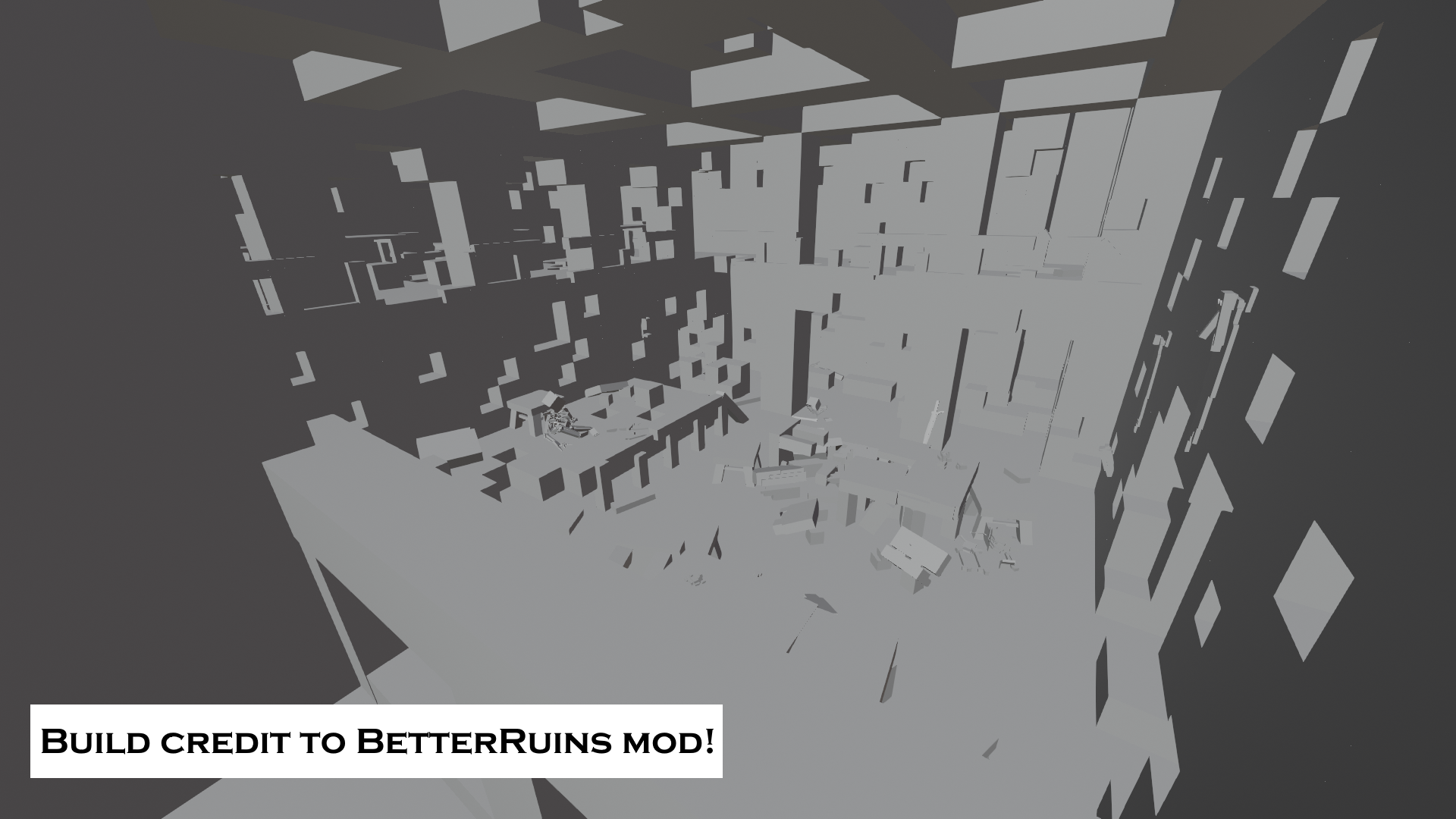

The real issue ive found is how much it sometimes culls the scene thats being exported. This can sometimes lead to extremely broken scenes, especially underground, from missing cave ceilings to sometimes being nothing more than a garbled mess

You mention youre gonna rewrite it once more, and im happy to see youre keen to make this mod the best it can be! Perhaps looking at how mods for minecraft does this can help? afaik they tend to read the map file rather than doing a gpu rip like you do.
Anyways, I think a really shoddy "hack" could be that, similar to "mega screenshots" in the game cranking the settings to maximum, taking the picture, and then returning to normal. Perhaps you could "disable" the face culling code in the renderer, create the export, then re-enable it?

EDIT: So people know, Durus has fixed my issue with poor culling, so thats all good!

Bjorn0411 Looks great! Would love to see the finished product. :D
Mmmmmm. I will think about how that might work. Currently the mod reuses alot of game code to tesslate the meshes. The game tessalates bushes together with other opaque blocks in the same renderpass so I can't think of a way to seperate out specific blocks without significant patching. I'm thinking about rewriting instead of reusing this code so there is more control over how it is exported. (all blocks of the same type exported as one object/material, each block exported as it's own object, etc.)

Of course you could tint the particular sections of the atlas png, but I can see how that is a rough workaround. This might be easier if it could export FBX files?

DeadpanGod3

The missing details/blocks should be fixed in 0.3.1/2! I had misunderstood how level of detail meshes work...

Interesting about the size limitation. I have given zero consideration to speed and memory performance. Been focused on functionality. Now that I think OBJ export is pretty solid, going to work on those kinds of improvements. For example, letting it export in the background and processing chunks serially. (Which should fix the export size issue)

_Durus_
Bravo! Wonderful work! Having materials exported with the world is a massive timesaver.

Seems to be mostly working so far! the only two issues ive encountered so far is having the OBJ exporter miss (skip? forget?) sloped shingle roof blocks in its export (red clay specifically in case it matters), I'm not sure if there are other blocks that are missed but thats the only one i've encountered so far in a couple quick tests.

The only other issue I encountered (not sure if this counts or is just me pushing the mod beyond it's intended limits) is exporting OBJ's with a diameter above 500 blocks results in the corners being rounded off and sizes beyond that will just be the same size as the 500 size one but with its origin moved off diagnally depending on how big it is.

Overall it works amazingly and both can be worked around. Thank you for your amazing work!

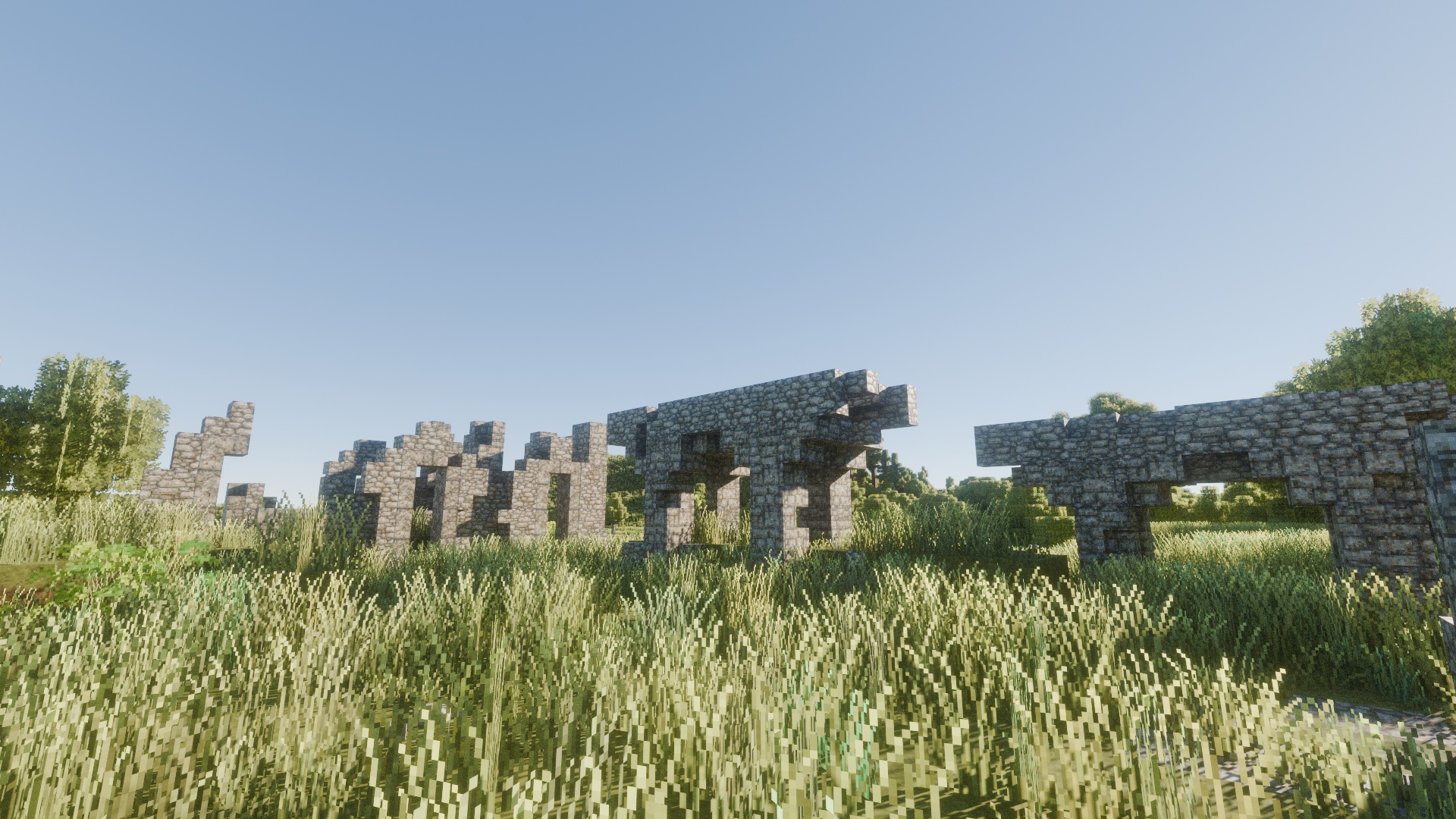

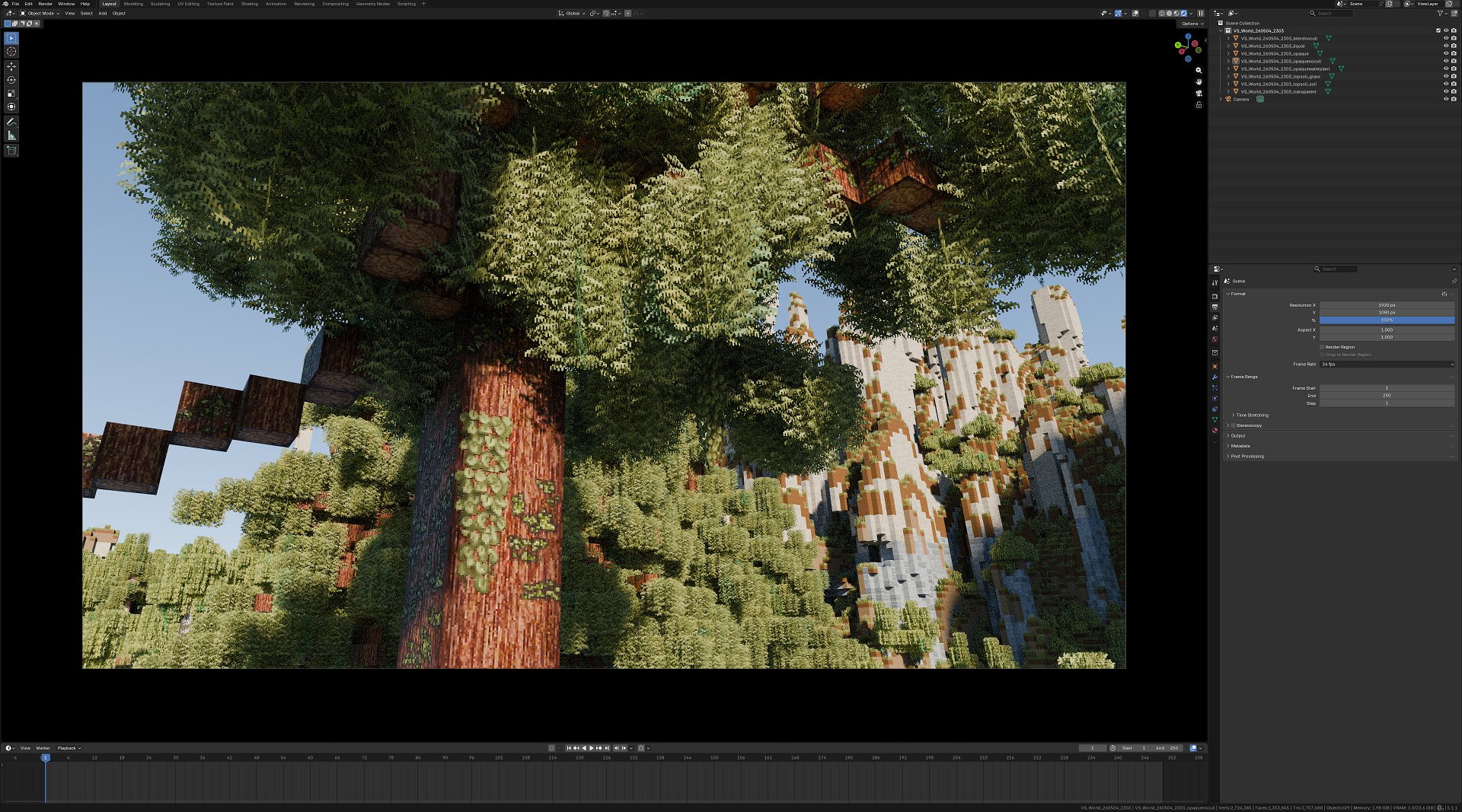

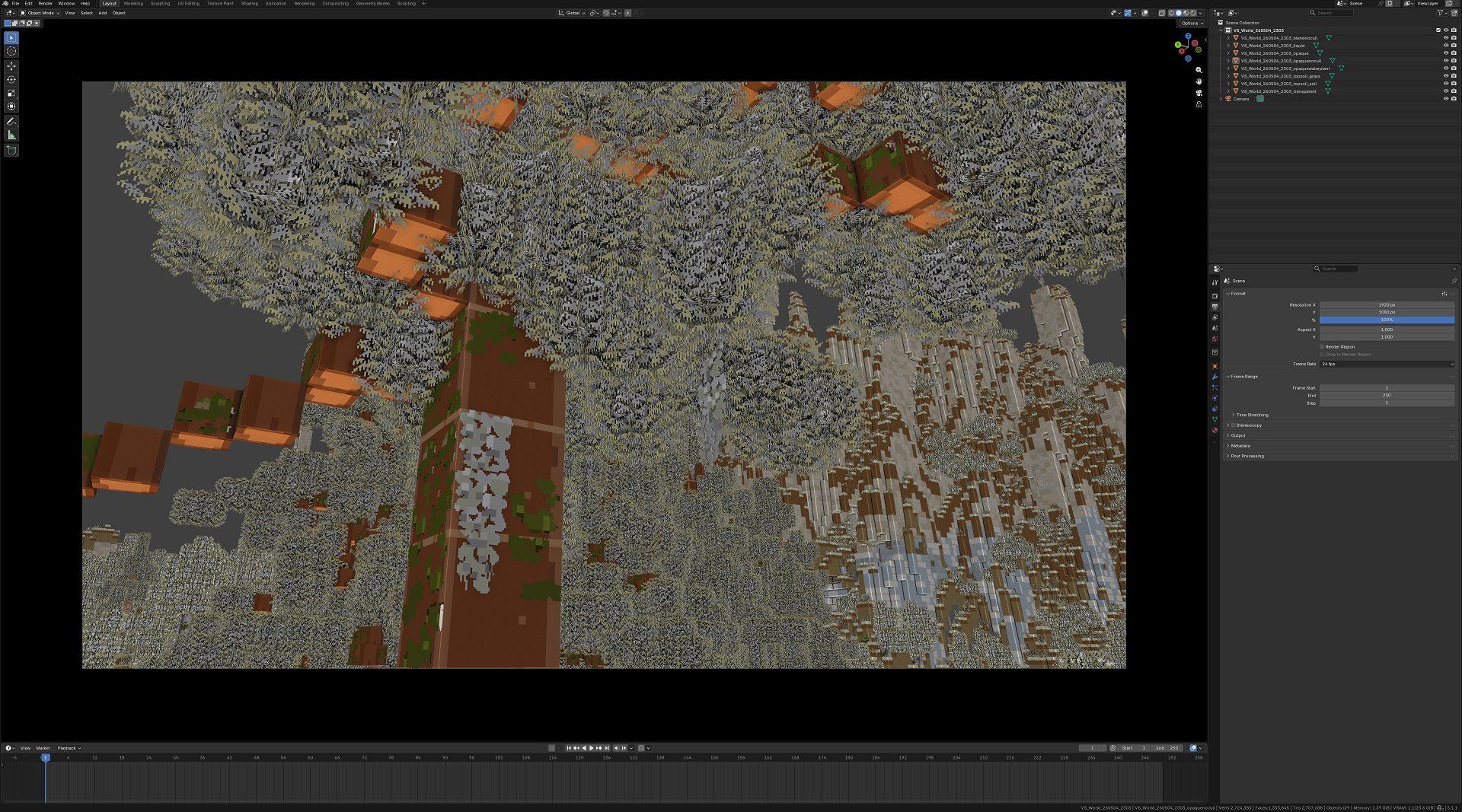

This was made before the update but I wanted to show a render I was able to make with the help of your mod:

also, one humble request.
Youve made it so that the grass layer is a separate material so we can apply the colour ourselves, this is excellent, a solution that works absolutely perfect for me. But itd be lovely if the same mechanism was applied to shrubery like tall grass and leaf blocks, aswell!

Thank you so much for these tools! This is something ive been desperately hoping you would add ever since you first uploaded the mod!

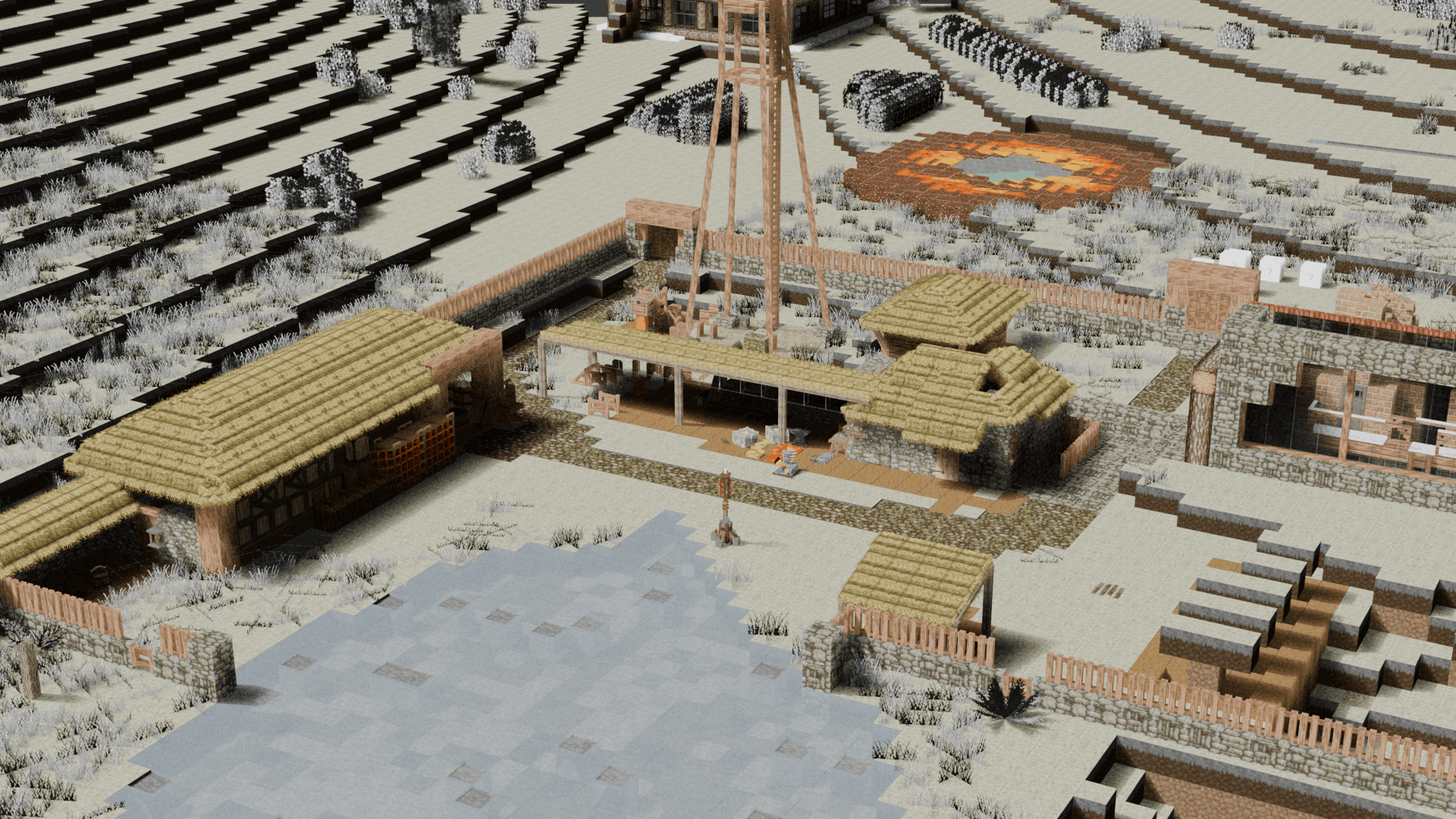

Heres a quick image render I did in about an hour or two from clicking export ingame. Its excessively dark but thats due to post processing during the image export that I cba with fiddling with at this point.
I'll probably shop around for better scenes to work with later, and maybe finally finish my Forlorn Hope armor set for the dragon fella I put into the image :P

Thanks again! im so happy you went the extra mile and made a tool thats really useful for us 3D artists!

Image inside spoiler so it doesnt cover 90% of the comment section lmao

Craythray Cylli_Billi

0.3.0 contains a significant rework that should sidestep most of these issues.

MIGITO Joegen DeadpanGod3 EndlessOats
Sorry for the radio silence! I had my head down working on this, other projects, and life! I hadn't realized there were more comments about wanting textures, would have hustled a little more...

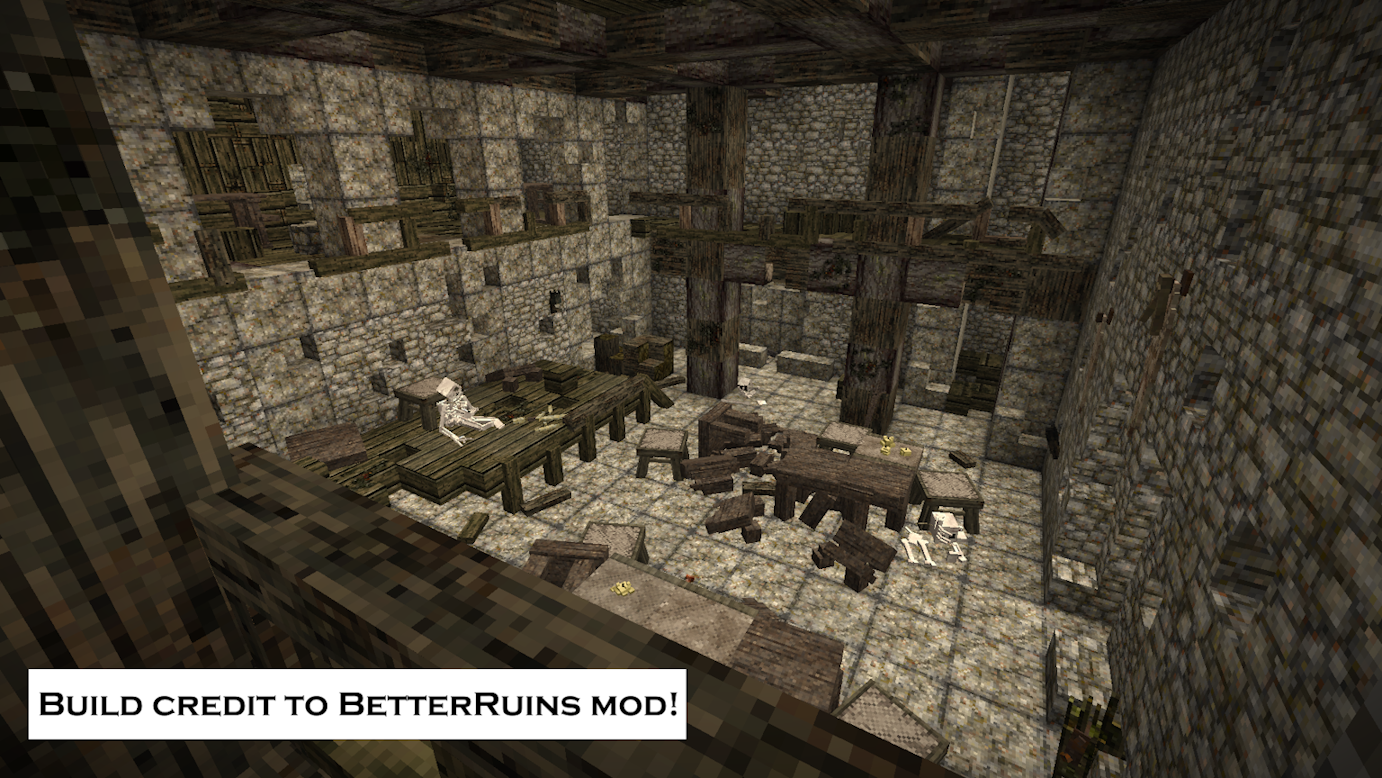

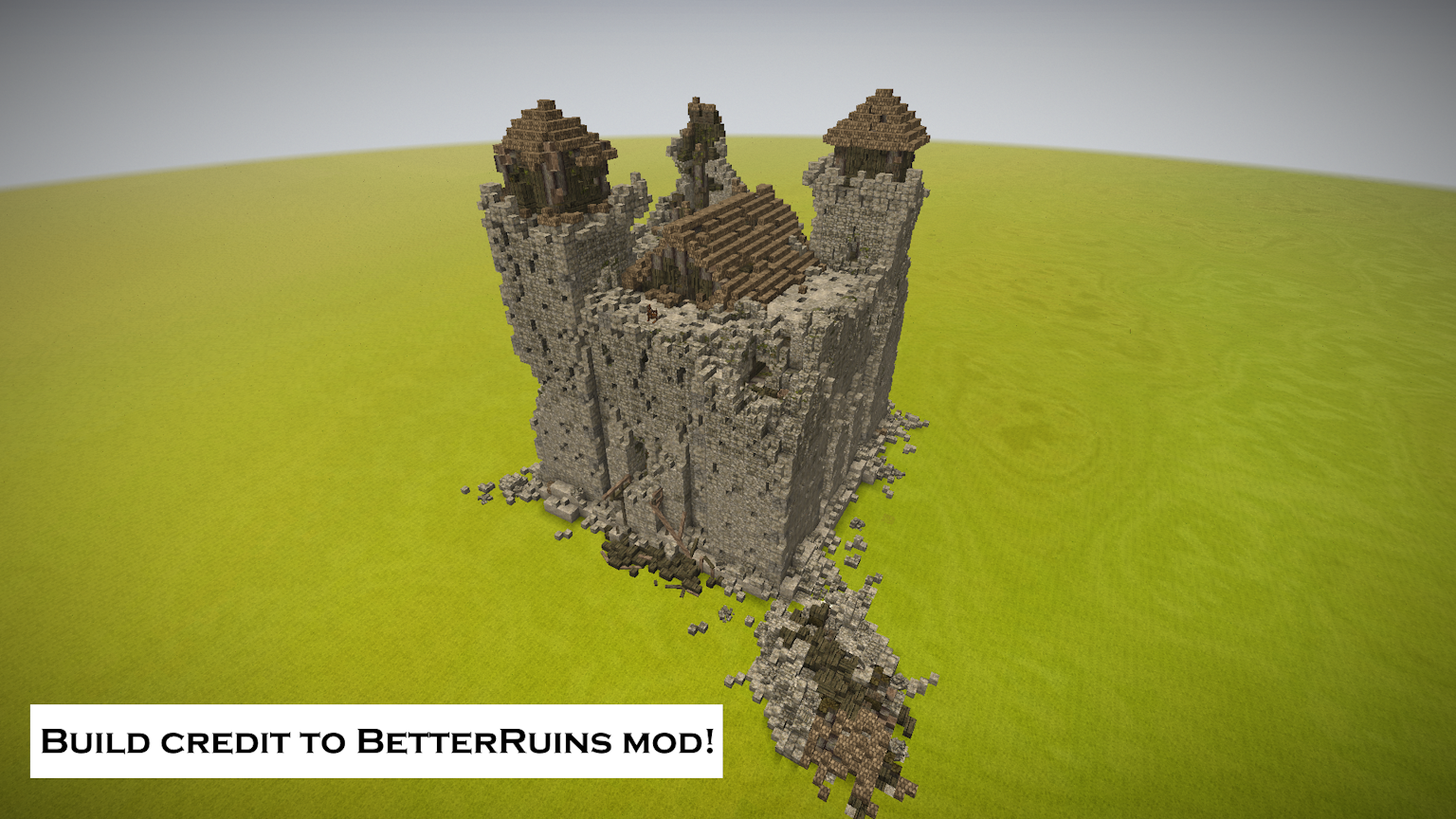

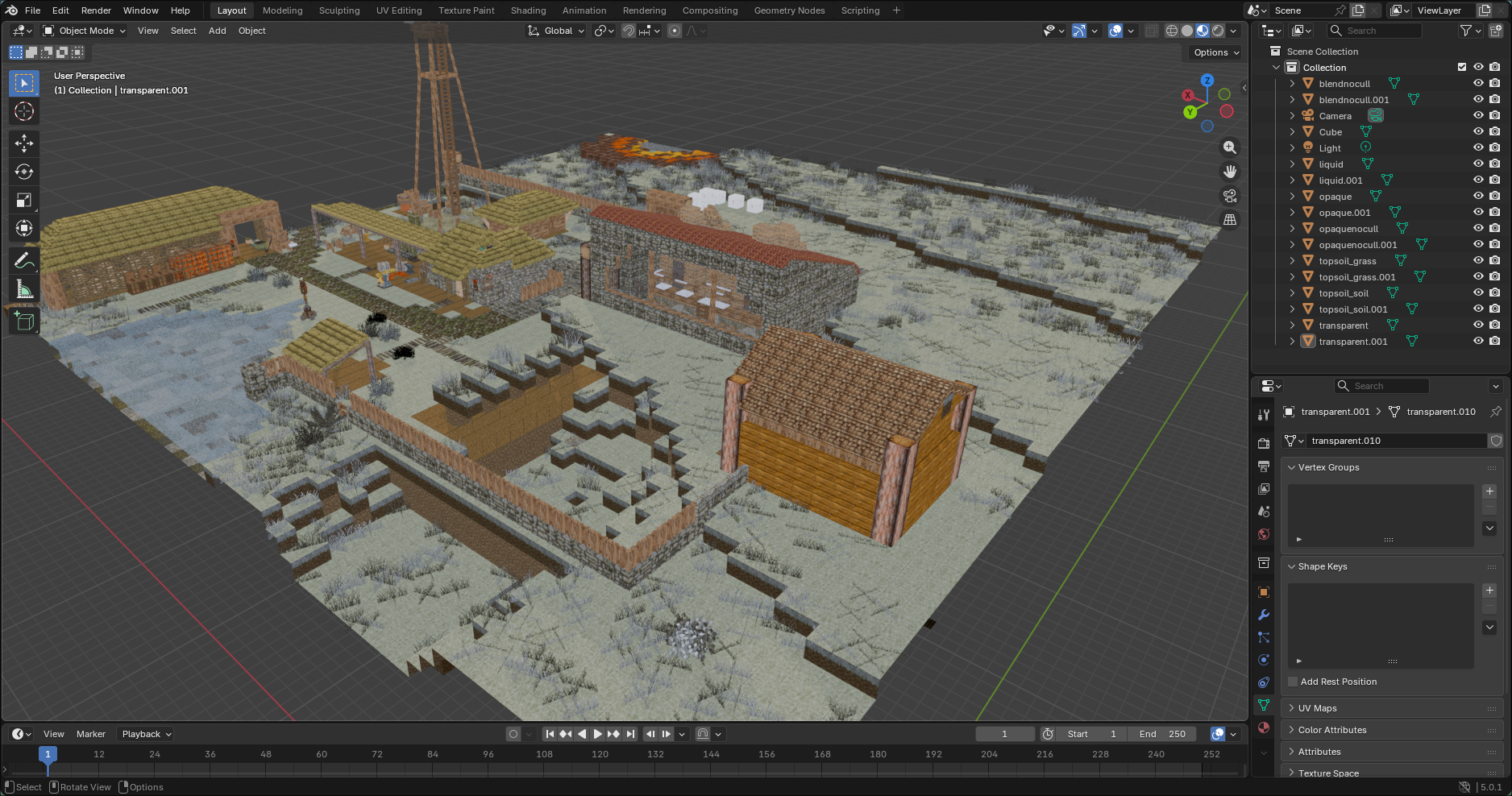

Excited to say that I have Wavefront OBJ working! Texturing and proper transparency is now doable. (See the new pictures above)

Please let me know if it's working!

I decided to significantly rework my approach as I was essentially re-coding the same thing that the game does to create chunk meshes. So I decided to just reuse game code for now which made textures and internal faceculling much easier— at the cost of being locked in to how the game renders things... So adding configuration for how it exports may be harder in the future.

Joegen

Thank you for the valuable feedback! :)

I made this mod because I love 3D printing, and thought it was a shame you couldn't 3D print Vintage Story worlds. Then started getting DMs about textures, animating, and rendering... which I have probably 10 hours of experience total in. So I am quite unfamiliar with those workflows. Some questions:

1. How important is it for animation to have the full block mesh? No culling? Is there much of a need to "split open" the terrain where these details are necessary? I guess I'm asking if it's important to have the option to export un-culled terrain meshes. If the desire is to just have a certain model that can be animated, would a simple `.wexport export object quern-granite` be useful for getting a standalone mesh of a particular item/block?
2. The USD-type workflow is a good idea (I had just done this quick and dirty before), but now that it uses the games tesselation pipeline, will hopefuly be able to sidestep this optimization. This comment was for optimization correct? Doesn't change outward features?
3. Regarding an "add" option, yes! Will be doing this. However, since there already exists "world export" commands (which just save the world) if I'm gonna do a command refactor, I was thinking of just co-opting these commands (I think it's possible?) which do indeed have the "add" workflow. Mmmmmm.
4. Would also like your opinion if my handling of exporting the grass overlays is adequate. See notes in description.

And yes I absolutely welcome any help! I can make you a contributor. I made this on a whim to learn some graphics programming and give my fellow 3D printing fans a tool, but I don't have much experience with, and lack the motivation for, rendering and animation tooling. I would love help with regard to what the heck "DCC import" is and more insight into the workflow for those who want rendering and animation tooling! :D

DeadpanGod3 Joegen Agreed immensely, I hope it's at the top of the priority list here because I would love to be able to make animations and such using actual story structures instead of having to build them from scratch in blender. Awesome tool already though

When i export an model that contains anything other than cubes its just a string of meshes

Joegen

Seconding this as someone who has also been using this as an exporter to Blender for rendering, exporting textures as an option would be at the top of my wishlist.
I'd also be interested in this setup you've mentioned as i'm still in the learning stages and curious as to what it entails exactly.

Great work! The stuff I tested really came out clean.

For 3D printing, it's perfect and super easy to clean up and make stuff manifold, then print. Though it requires a lot of effort to turn an export into a fully animated short because there are no UVs or IDs for the blocks.

I've been building pipelines around other block-based stuff solely for animation and "offline" rendering (trailers, etc.). I have a few suggestions if you want to make it a fully-fledged exporter for any pipeline:

First off, something that might help tick of the first box in your "other feature ideas"

• Export stuff that has alpha with UVs and the texture (or at least a JSON for the texture name). This would allow the user to edit the mesh and cut out the alpha with Geometry Nodes. (I actually have a setup in Blender for cutting out alpha from a texture to the mesh, which I can hand over/publish).

• Focus on a USD-type workflow for scalability. This would be complex to begin with, but it would be incredibly robust for anything. Every block gets written as a primitive to be instanced. These instances would have UVs and a material with the texture assigned to them. Then the instancer distributes these blocks on points with block properties, ID, Index, Rotation, and Scale (if any), which is info that the VS engine already houses.

  • You could have an instancer per chunk to optimize the export a bit. Though it's best if there are no duplicate primitives for workflow purposes. First finding out what blocks exist in an export, assigning an ID, and then creating the instancer might be a better idea. (Mineways does it the other way around, which creates duplicate primitives since, if the same block is in another chunk, it assigns a different ID to it).

• You could add an "Add" option instead of a GUI or Wand to begin with. This would let the user define multiple regions and then export them all at once. This would be great for flying around in a cave, adding the 20 blocks around you, going to the next point and adding again, and then running the export. Tunnel networks or narrow, dungeon-like places would be super easy to export like this.

I'm just babbling at this point..

If you want to expand this project, I can help out with the DCC import and cleanup end, like Houdini or Blender (perhaps Blender so that it's accessible to everyone). I have near to no knowledge on how to compile a mod for VS, so I might be talking out of my bum saying all of this though.

Importing a Underground cave results in the inbetween faces being connected resulting in faces "webbing" all of the cave. Any fix for this?

Does this mod export the model textures as well?

DAMN how the hell did you managed to do that
